LENGTH
BEAM
LEG LENGTH
DRAFT
MAX. DECK LOAD
MAX WATER DEPTH
CONSTRUCTION
ELEVATING MECHANISM
POWER PLANT
OPTIONAL CRANE
40 Ft.
15 Ft.
40 Ft.
9,000 LBS AT 18 IN. DRAFT
15,000 LBS EVENLY DISTRIBUTED
32 FT. (FOR ELEVATING PURPOSE)
STEEL
HYDRAULIC
SINGLE DIESEL ENGINE
2.5 TON HYDRAULIC
YOUR ECONOMICAL ANSWER
STARTS HERE
CALL NOW
FOR SALES and LEASING
Jim DiFatta @ (504) 682-2100


1035 Hwy 39 Braithwaite, LA 70040  U.S.A.
(504) 682-2100 fax(504) 682-4200
SD 40/15
___________________________
40 ft. CLASS JACK UP

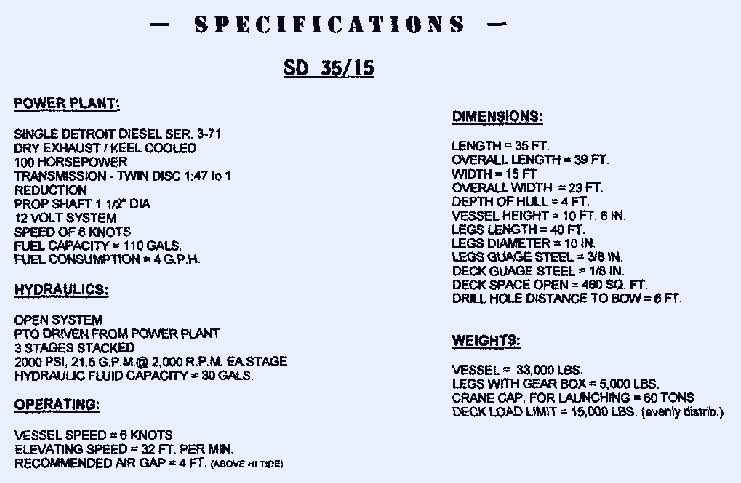

SPECIFICATIONS
summary
___________________________
___________________________
